Handheld Colorimeter Color Meter 4mm 8mm Caliber Color Difference Meter Tester Analyzer with Free PC Software D65 D50 A Light Source Camera Locating and Illumination Location Function

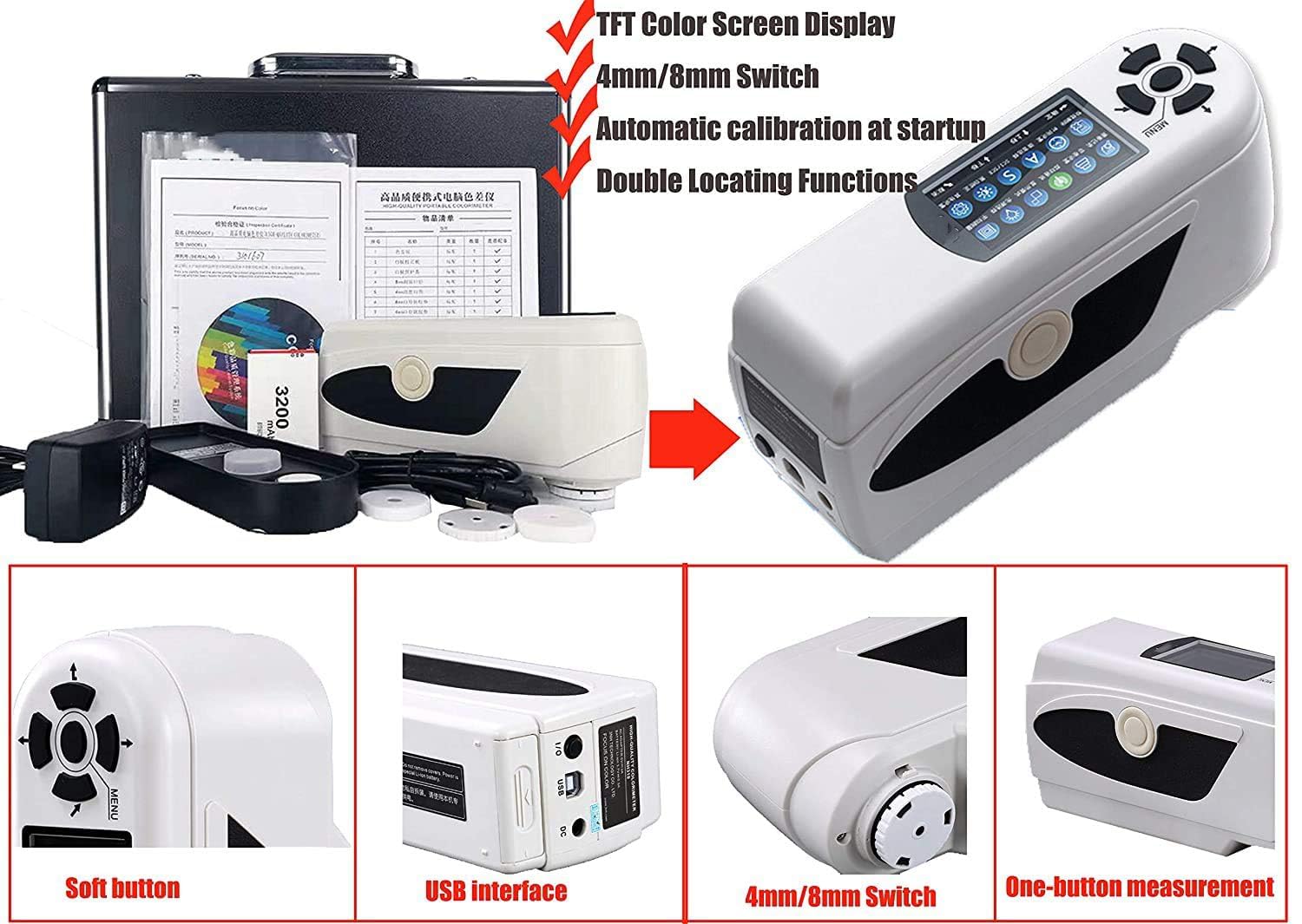

Feature:◆4mm/8mm Aperture Switch. ◆Stable Measurement Performance. ◆Flexible and Accurate Locating. ◆More Measurement Modes. ◆PC Software—Realize More Function Expansion. ◆Li-ion battery can be repeatedly charged which will save cost. Meanwhile, it can measure more than 3000 times on one charge to ensure the stability of long time measurement. ◆Camera locating and illumination location (It has new functions of double locating.). ◆Automatic calibration at startup. Technical Specifications: ◆Measurement geometry: 8 / d ◆Selectable measurement aperture: 8mm / 4mm◆ ◆Color space: CIEL*a*b*C*h* CIEL*a*b* CIEXYZ CIERGB CIEL*u*v* CIEL*C*h Yellowness & Whiteness Color Fastness ◆Color difference formula: ΔE * ab ΔL * a * b * ΔE * c * h * ΔECIE94 ΔEhunter ◆Light source: Standard light source D65 D50 A◆◆Light Source Device: LED blue light excitation ◆Errors Between Each Equipment: ≤0.40ΔE*ab◆Storage: Storage 100 standard 20,000 samples◆Repeatability: 0.06ΔE * ab measure 30 times the average of the white standard plate◆Weight: 500g◆Size: 205 × 70 × 100 mm◆Power: Rechargeable lithium-ion battery 3.7V@32000mAh◆Battery life: Lamp life is greater than 1.6 million five-year measurements ◆Charging Time: 2 hours (first time 8 hours--100% electricity)◆Measuring Times Before Recharging: Measuring Times Before Recharging◆Operating Temperature/Humidity Range: -10~40℃, relative humidity 0~85% with no condensation◆Data Interface: USB interface◆Optional Accessories: micro thermal printer ; Long caliber (optional)Φ8mm lengthened caliber concave parts can be measured

• ◆(1)Leading Humanity Design and Convenient Operation ------------Auto White and Black Calibration at Startup,Structure Design in line with Ergonomics,Easy-to-use Operation Interface.
• ◆(2)Stable Measurement Performance ------------The average fluctuation of △E is less than 0.06, actually more in 0.03~0.06.Portable structure design which is more conductive to keeping the instrument stable when using.
• ◆(3)Flexible and Accurate Locating ------------Camera locating can solve the problem of locating a small area. The minimum width of locating is 4mm.Illumination locating is a fast, simple and convenient locating function.
• ◆(4)More Measurement Modes ------------Two measuring apertures (Φ8mm/Φ4mm)for more circumstances;Five color spaces for more color schemes selection;Three light sources for more circumstances.
• ◆(5)PC Software—Realize More Function Expansion ------------Be able to perform color difference analysis, color difference cumulative analysis, chromaticity index, color sample database management, simulating object color, etc.
